Scanstrut  |  SKU: DS-HSL-01-BLK

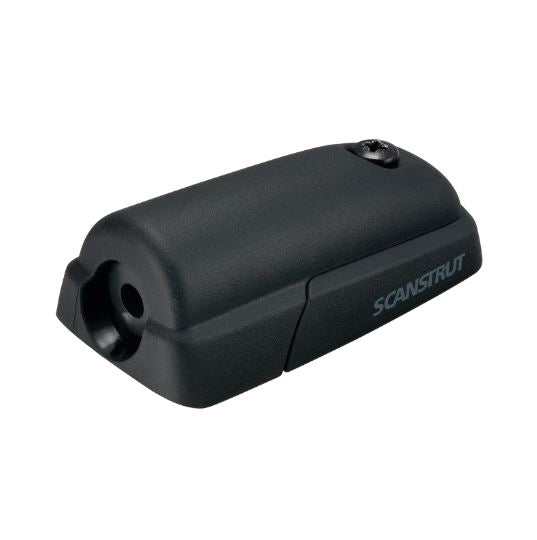

Starlink® Compatible Horizontal Cable Seal -Black

$54.96
Tax included Shipping calculated at checkout.

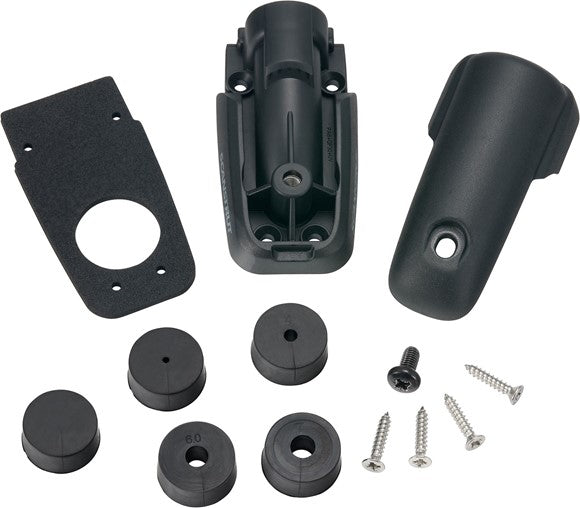

The supplied split pre-drilled bungs allow cables with connectors already attached to pass through the seal, removing the need to cut and re-terminate connectors during installation. Multiple bung sizes and a self-drill option allow installers to easily customise the fit while maintaining a watertight seal.

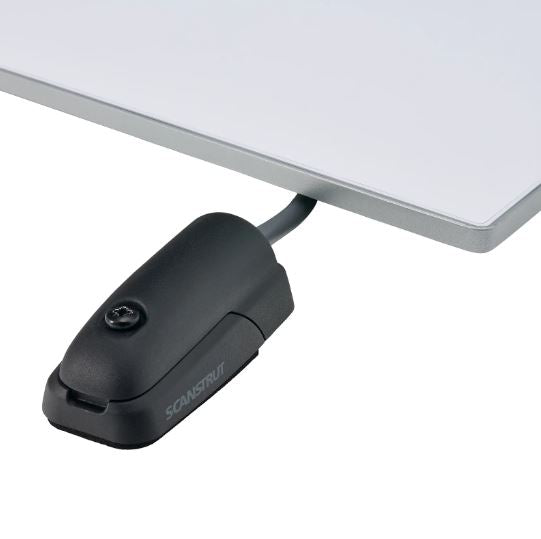

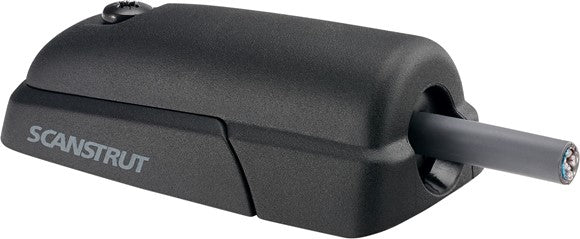

Based on our most popular horizontal cable seal design, the low-profile construction is impact-resistant and offers additional protection against water ingress. The horizontal cable entry keeps the cable exit as close as possible to the mounting surface, creating a neat, professional installation.

Suitable for cables ranging from 2–8 mm (0.07”–0.31”), the DS-HSL-01 is ideal not only for Starlink installations but also for solar panels, light bars, lighting and other rooftop electronics.

Marine Grade Materials
Manufactured from premium UV-stable, hard-wearing materials, the DS-HSL-01 is built for long-term outdoor performance. Rated IP68, it delivers a guaranteed 100% watertight seal in demanding marine and outdoor environments.

Easy Installation
Captive nuts ensure a fast and reliable installation while allowing repeat fitting if required. The easy-fit cable routing system helps reduce installation time and delivers a clean, professional finish.

Compatibility Without Removing Connectors
Starlink:

  • Starlink Performance (Gen 3)
  • Starlink Enterprise (Gen 3)
  • Starlink Standard (Gen 3)
  • Starlink Mini

Other:

  • NMEA cables
  • RJ45 cables

Technical Specification

Material High Impact Plastic
Height 29mm (1.14”)
Length  88mm (3.46”)
Colour  Black or Grey
Cable Compatibility Starlink Performance (Gen 3), Starlink Enterprise (Gen 3), Standard (Gen 3), Mini, NMEA cables, RJ45 cables
Max Connector size 16mm (0.62”)
Bungs 2-3mm (0.07-0.11”) / 4-5mm (0.15-0.19”) / 6-7mm (0.23-0.28”) / 7-8mm (0.28-0.31”) / 1 x Self Drill
