Cable Seals | DS40-S Vertical Stainless Steel
Cable Seals | DS40-S Vertical Stainless Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Scanstrut Cable Seal Range
Scanstrut Cable Seal Range
Cable Seals range for vanlife:
VERTICAL
For all cable installations, with no need to cut off the cables connector and available in grey or black.
HORIZONTAL
Perfect for solar panels, light bars, lights and other rooftop electronics. Available in grey, black high-impact plastic.
MULTI
Perfect for solar panels, light bars, lights and other rooftop electronics.
Delivery and Shipping
Delivery and Shipping
Receive your Scanstrut Cable Seals via Australia Post - you can choose between standard or fast post at the checkout.

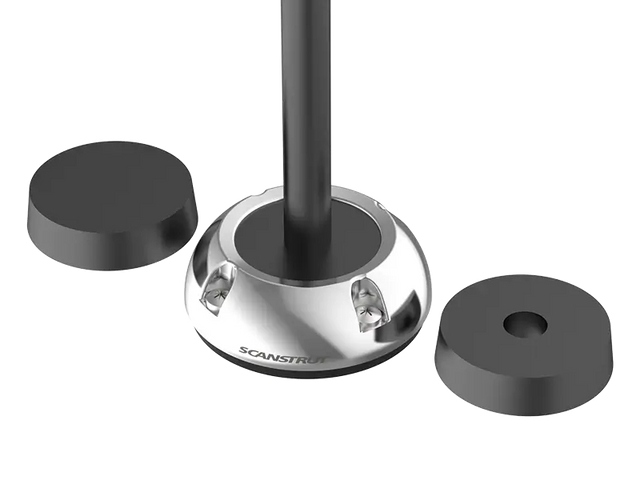

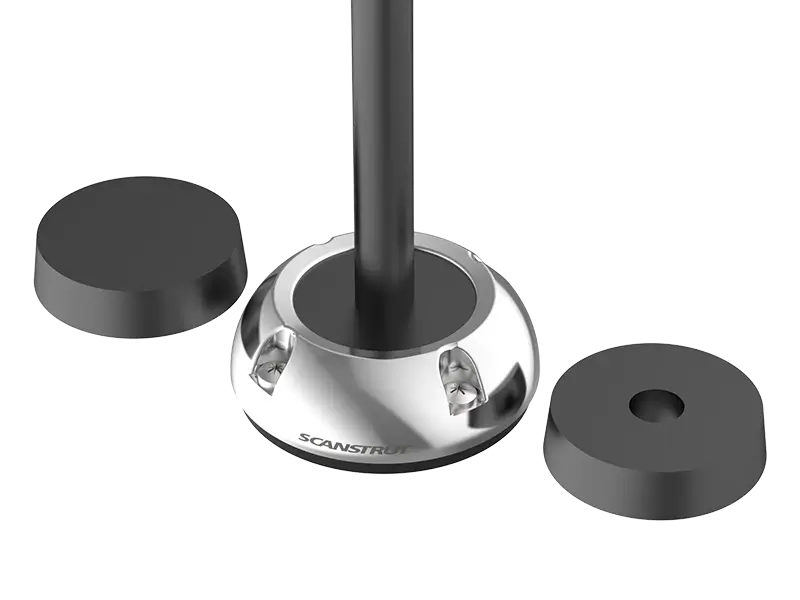

Cable Seals | DS40-S Vertical Stainless Steel
Our largest IP68 vertical entry cable seal accommodates sizes from 12-15mm (0.47"-0.59") and connectors up to Ø40mm (1.57"). Made from 316 Stainless Steel, the aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Premium Material
Constructed from marine-grade 316 stainless steel, the design is not only aesthetically pleasing but also built to thrive in the outdoor environment. 316 stainless steel has exceptional corrosion resistance and durability making it the perfect choice for withstanding the elements. This ensures your installation remains intact even in the harshest conditions.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option enables connectors up to Ø40mm (1.57") to remain installed during the installation process.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø40mm (1.57") in diameter
- Fully customizable with self-drill bung options
Technical Specification
| Material | Marine Grade Stainless Steel |
| Height | 21.7mm (0.85") |
| Colour | Silver |
| Diameter of Cable Seal | 69mm (2.72") |
| Diameter of Cable | 12 - 15mm (0.4 - 0.59") |
| Bungs | 1 x 12mm (0.46") / 1 x Self drill |
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Scanstrut Testing Ethos
Our testing standard at Scanstrut is encapsulated by the acronym SCA, which stands for Safe, Certified, and Approved. With over 35 years of experience and expertise in designing products for outdoor use, we design our products to be able to thrive in the harshest of outdoor environments.
Before any product is released, it must pass through our rigorous testing program which involves assessments in electrical, mechanical, U.V., corrosion, thermal, and waterproof categories. To ensure the highest level of accuracy, testing is conducted both internally and by independent ISO accredited test houses.
Our commitment to quality has earned us the approval of renowned names such as Mercury Marine, Grady White Boats, Boston Whaler, Winnebago, Airstream and many more. To learn more about our testing program and certifications, please feel free to reach out to us.
