Scanstrut  |  SKU: DS30-S

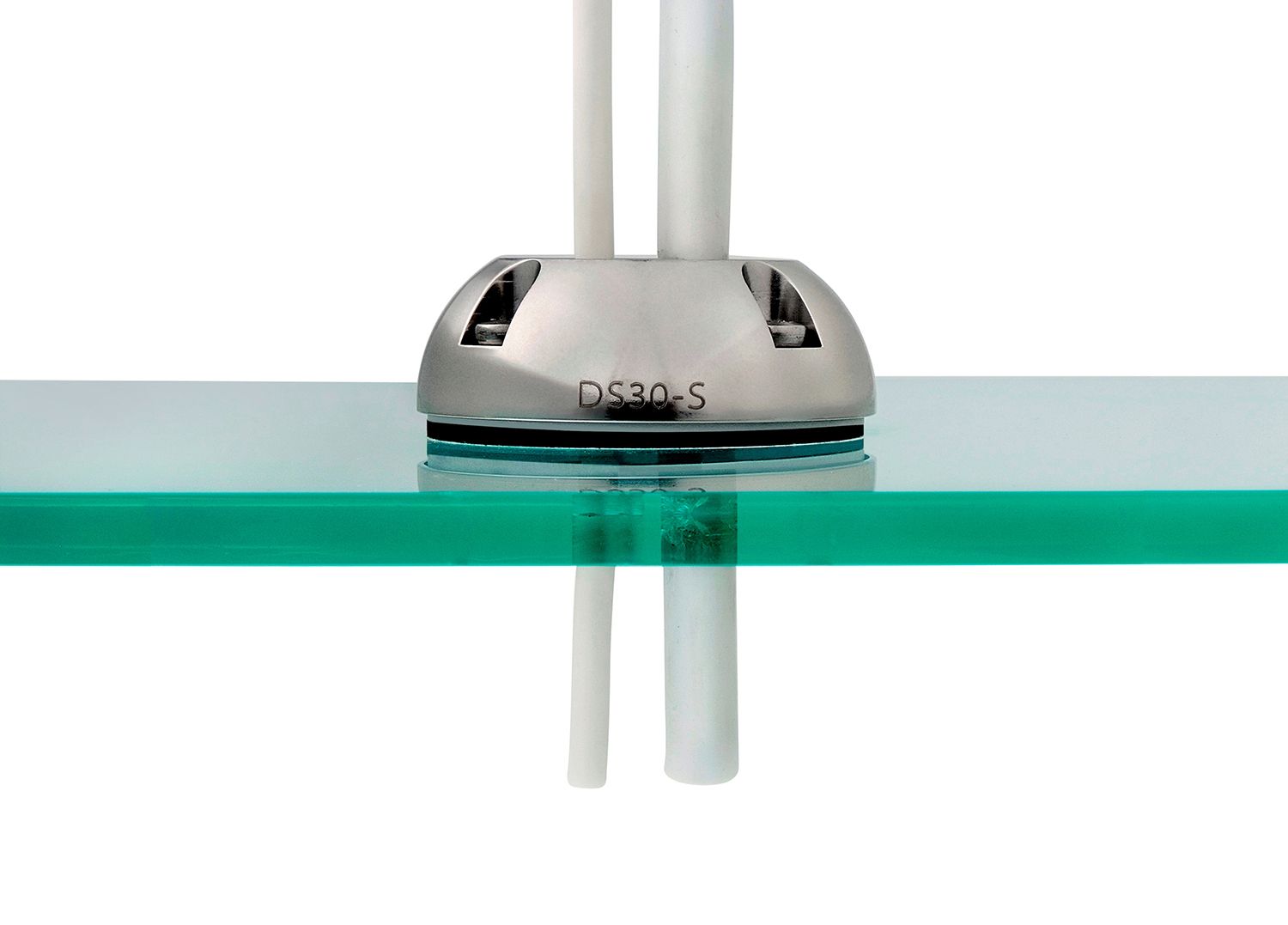

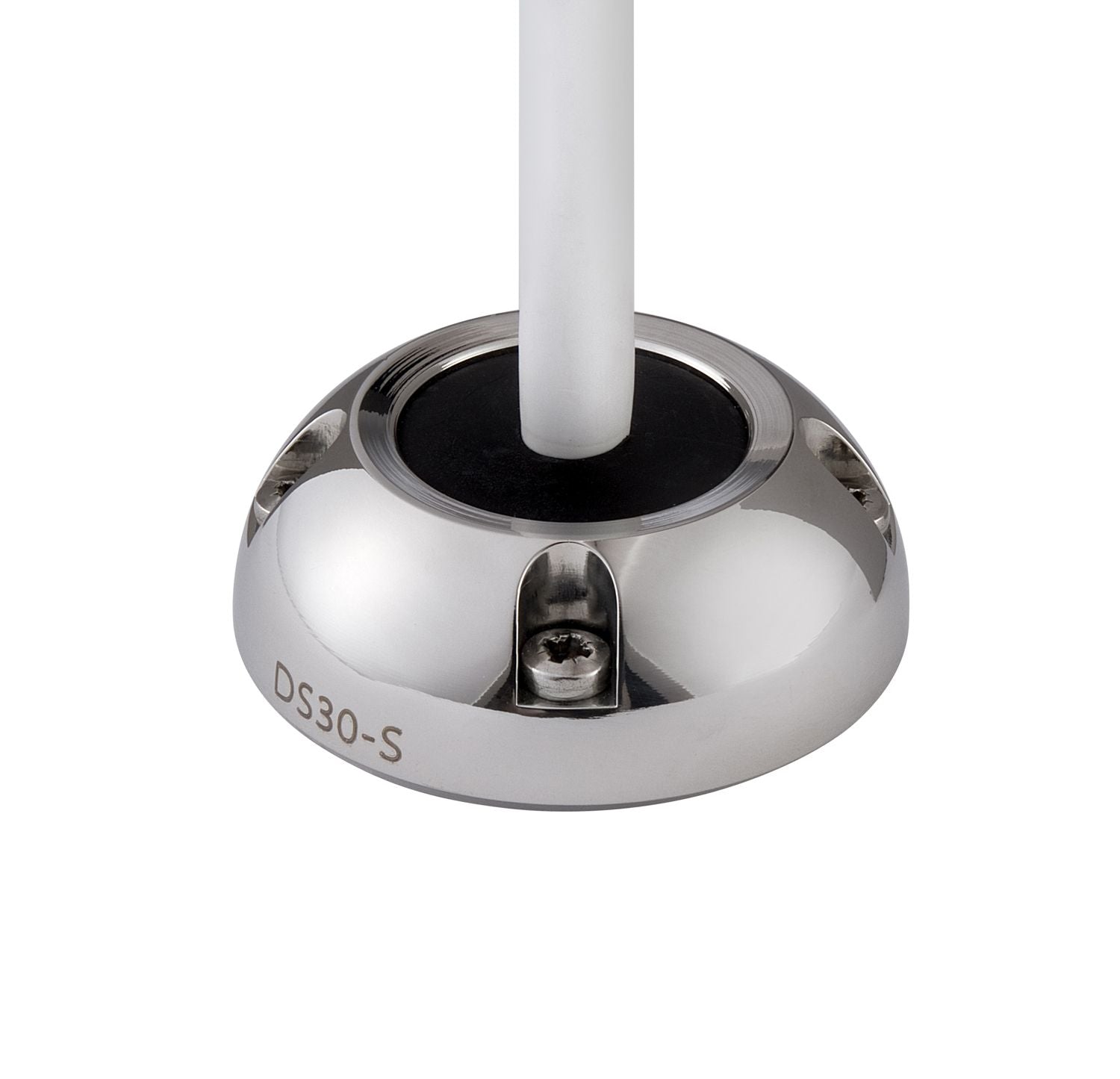

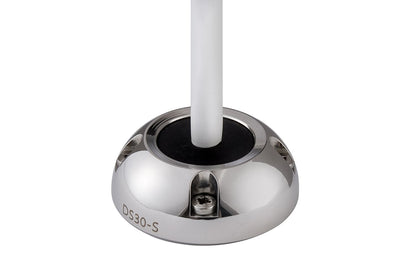

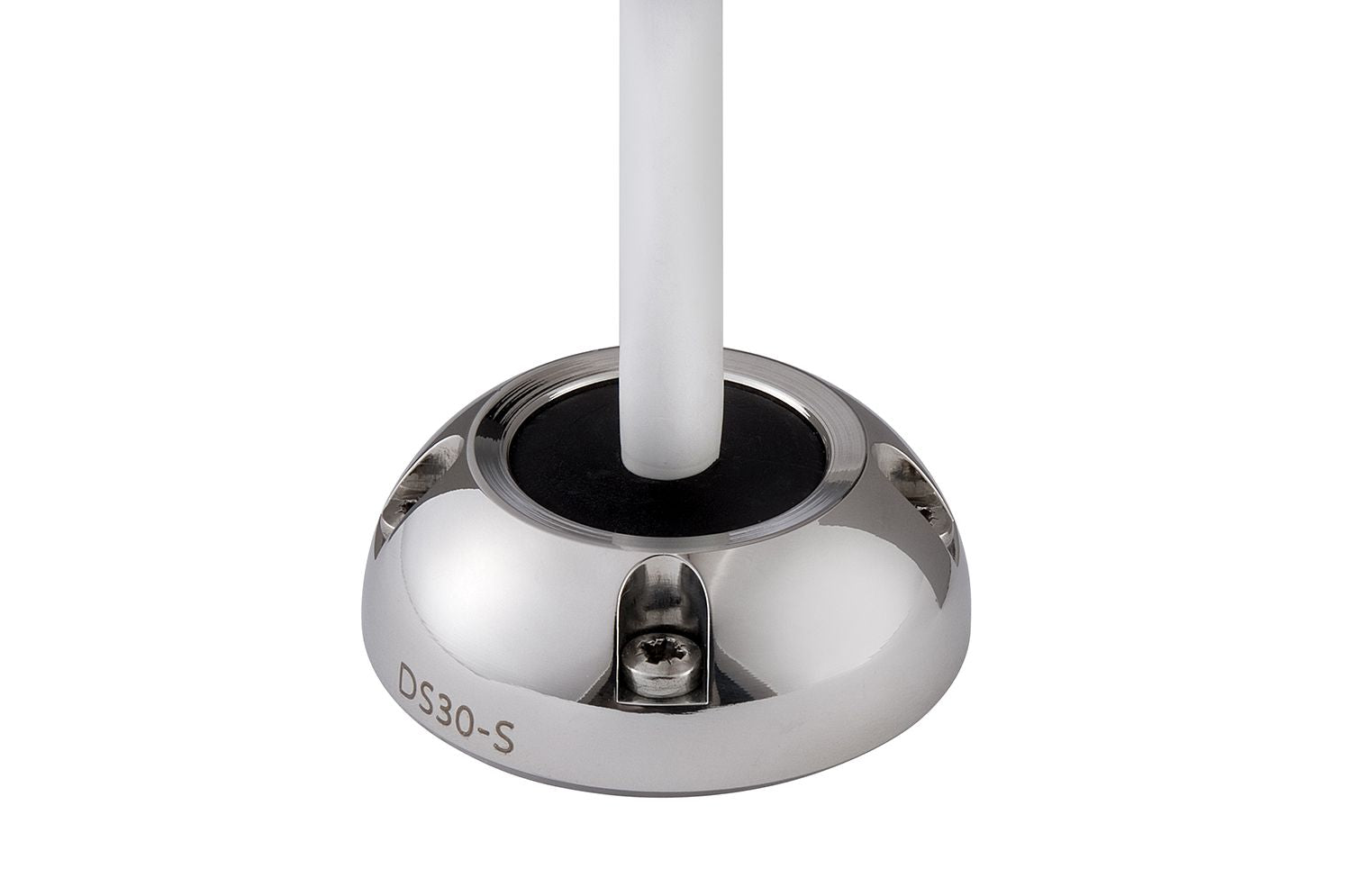

Scanstrut - Vertical Cable Seal DS30 - Stainless

For cable seals from 9-14mm (0.35"-0.55") and connectors up to Ø30mm (1.18"). Made from 316 Stainless Steel, the aesthetic dome-shaped profile provides a stronger, impact-resistant design...

  • IP68 waterproof rated
  • Made from premium marine-grade UV-stable materials
  • Includes 316 stainless steel fixings and a waterproof 3M gasket
Product details & compatibility
Regular price $115.95
Tax included Shipping calculated at checkout.
Make sure it fits your setup.

Check dimensions, connections and model compatibility before ordering.

Ask a product questionBuying for your workshop or business?

Scanstrut Cable Seal Range

Cable Seals range for vanlife:

VERTICAL
For all cable installations, with no need to cut off the cables connector and available in grey or black.

HORIZONTAL
Perfect for solar panels, light bars, lights and other rooftop electronics. Available in grey, black high-impact plastic.

MULTI
Perfect for solar panels, light bars, lights and other rooftop electronics.

Delivery and Shipping

Receive your Scanstrut Cable Seals via Australia Post - you can choose between standard or fast post at the checkout.

SCANSTRUT

Cable Seals

The Scanstrut range of cabling solutions eliminates the need for time-consuming, substandard cable routing and messy sealants, ensuring a 100% watertight installation for your cables every time.

THE DETAILS THAT MATTER

Get to know your next upgrade.

Product details, fitment and support in one place.
Product overview

For cable seals from 9-14mm (0.35"-0.55") and connectors up to Ø30mm (1.18"). Made from 316 Stainless Steel, the aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make for an easy assembly.

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Premium Material
Constructed from marine-grade 316 stainless steel, the design is not only aesthetically pleasing but also built to thrive in the outdoor environment. 316 stainless steel has exceptional corrosion resistance and durability making it the perfect choice for withstanding the elements. This ensures your installation remains intact even in the harshest conditions.

Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.

Easy and Reliable Installation
Captive nuts make for easy assembly and alsoallow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

Split Bungs
The split-seal option enables connectors up to Ø30mm (1.18") to remain installed during the installation process.

Key Features

  • IP68 waterproof rated
  • Made from premium marine-grade UV-stable materials
  • Includes 316 stainless steel fixings and a waterproof 3M gasket
  • Captive nuts ensure an easy and reliable repeat installation
  • No messy sealant on bungs
  • Split bungs for ease of installation
  • Install connectors up to Ø30mm (1.18") in diameter
  • Fully customizable with self-drill bung options

Technical Specification

Material Marine Grade Stainless Steel
Height 20.5mm (0.81")
Colour Silver
Diameter of Cable Seal 59mm (2.32")
Diameter of Cable 9 - 14mm (0.35 - 0.55")
Bungs  1 x 9mm (0.35") / 1 x 11mm (0.43")  / 1 x 13mm (0.51") / 1 x Self drill
