BR Systems  |  SKU: BKL-SHORT

Electric Bike Lift - Short (785-1265)

Make taking your e-bikes on the road effortless. The Electric Bike Lift – Short is a patented, 12V powered bike carrier that lowers your bikes down to a comfortable loading height, then l...

  • No more lifting heavy bikes – the integrated 12V motor raises and lowers the platform...
  • Lower to near ground level – the platform can bridge up to 110 cm of...
  • Built for e-bikes – rated to 60 kg total load, ideal for 2 e-bikes or...
Product details & compatibility
Regular price $3,000.00
Tax included Shipping calculated at checkout.
Make sure it fits your setup.

Check dimensions, connections and model compatibility before ordering.

Ask a product questionBuying for your workshop or business?

THE DETAILS THAT MATTER

Get to know your next upgrade.

Product details, fitment and support in one place.
Product overview

Make taking your e-bikes on the road effortless. The Electric Bike Lift – Short is a patented, 12V powered bike carrier that lowers your bikes down to a comfortable loading height, then lifts them back up securely for travel – no heavy lifting, no awkward balancing.

Perfect for motorhomes, campervans and RVs, it’s designed to carry modern e-bikes safely while keeping access to the rear of your vehicle simple.



Why you’ll love it

  • No more lifting heavy bikes – the integrated 12V motor raises and lowers the platform at the push of a button (switch or optional remote).

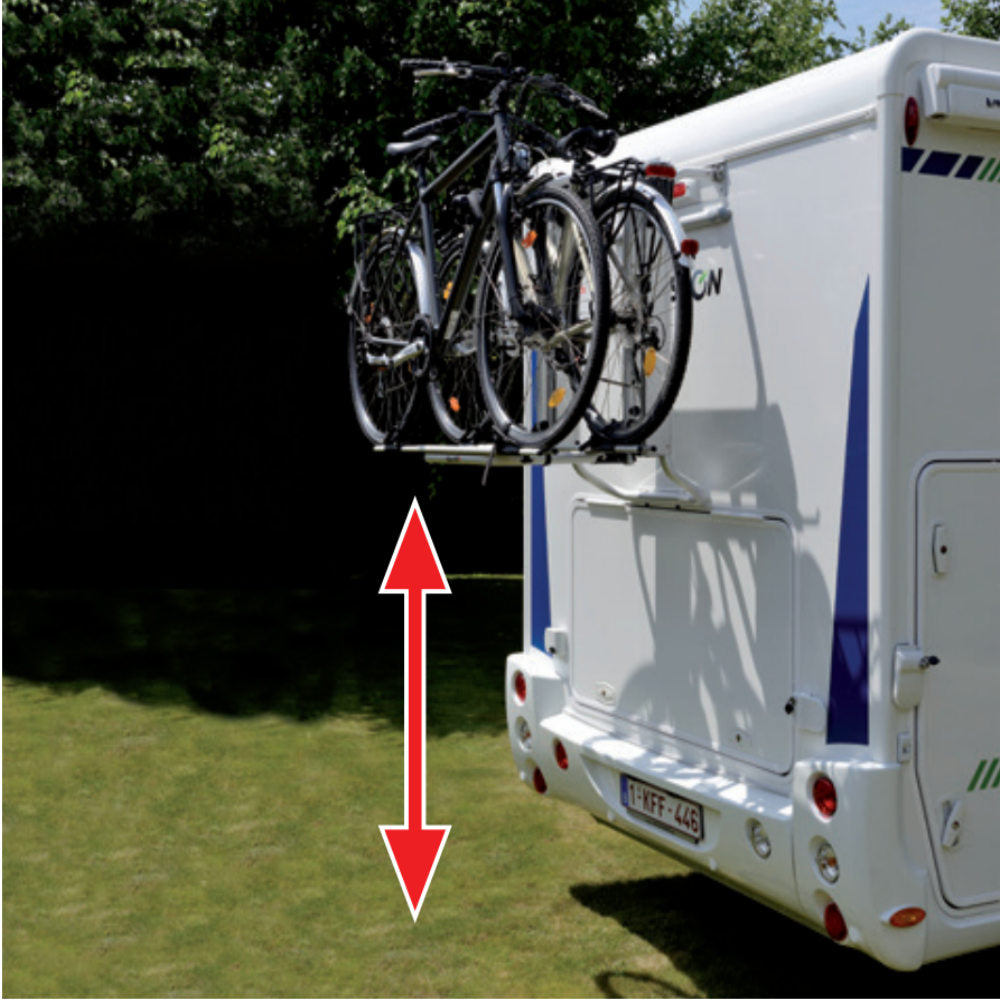

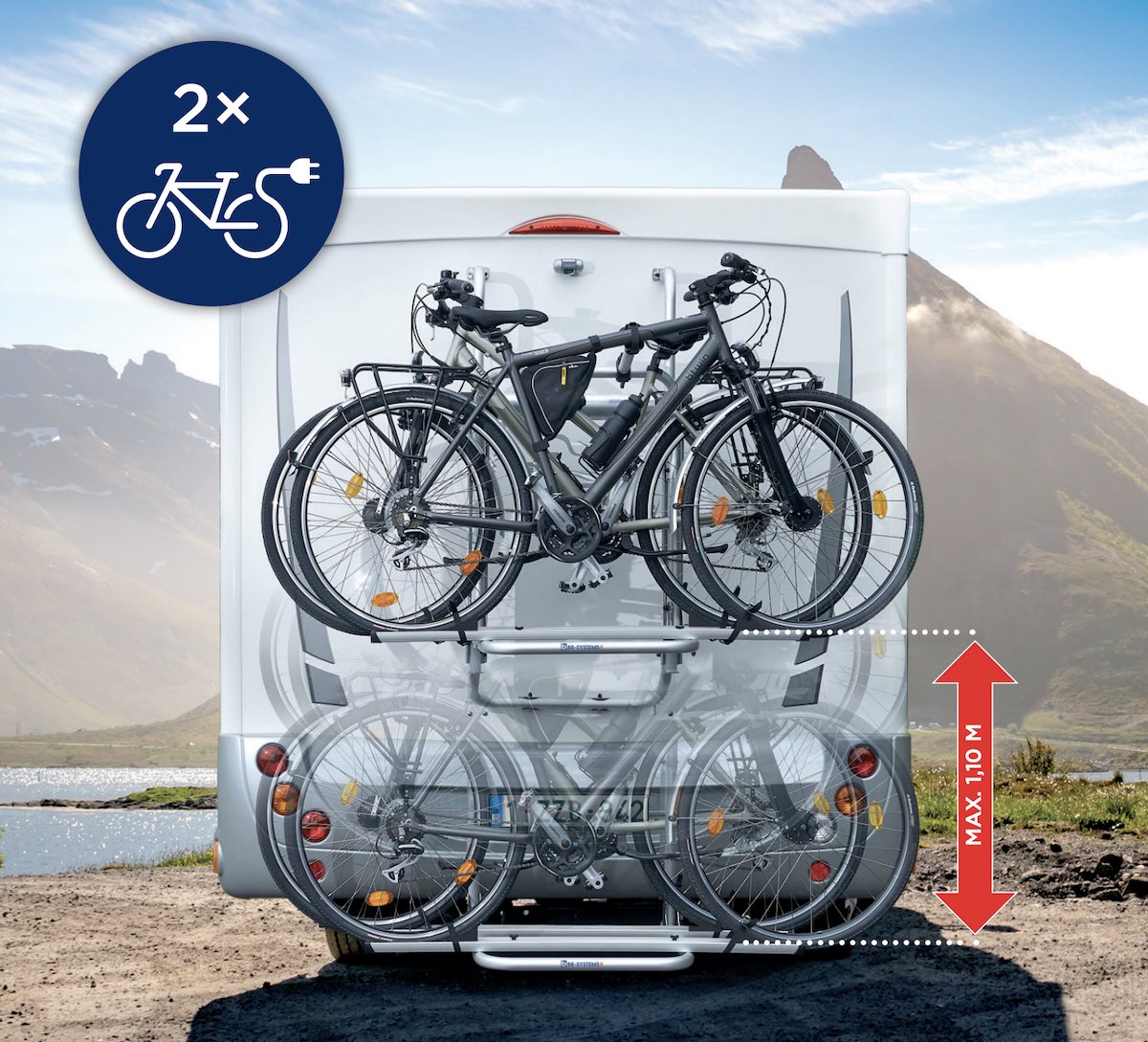

  • Lower to near ground level – the platform can bridge up to 110 cm of height, so you can load bikes at a comfortable level on most vehicles.
  • Built for e-bikes – rated to 60 kg total load, ideal for 2 e-bikes or 3 standard bikes.
  • Light but strong – the lift itself weighs only 20 kg, keeping your rear setup as light as possible.
  • Works with different vehicles – adjustable mounting points make it easy to fit to a wide range of motorhomes and RVs or replace an existing rack.



Key specifications

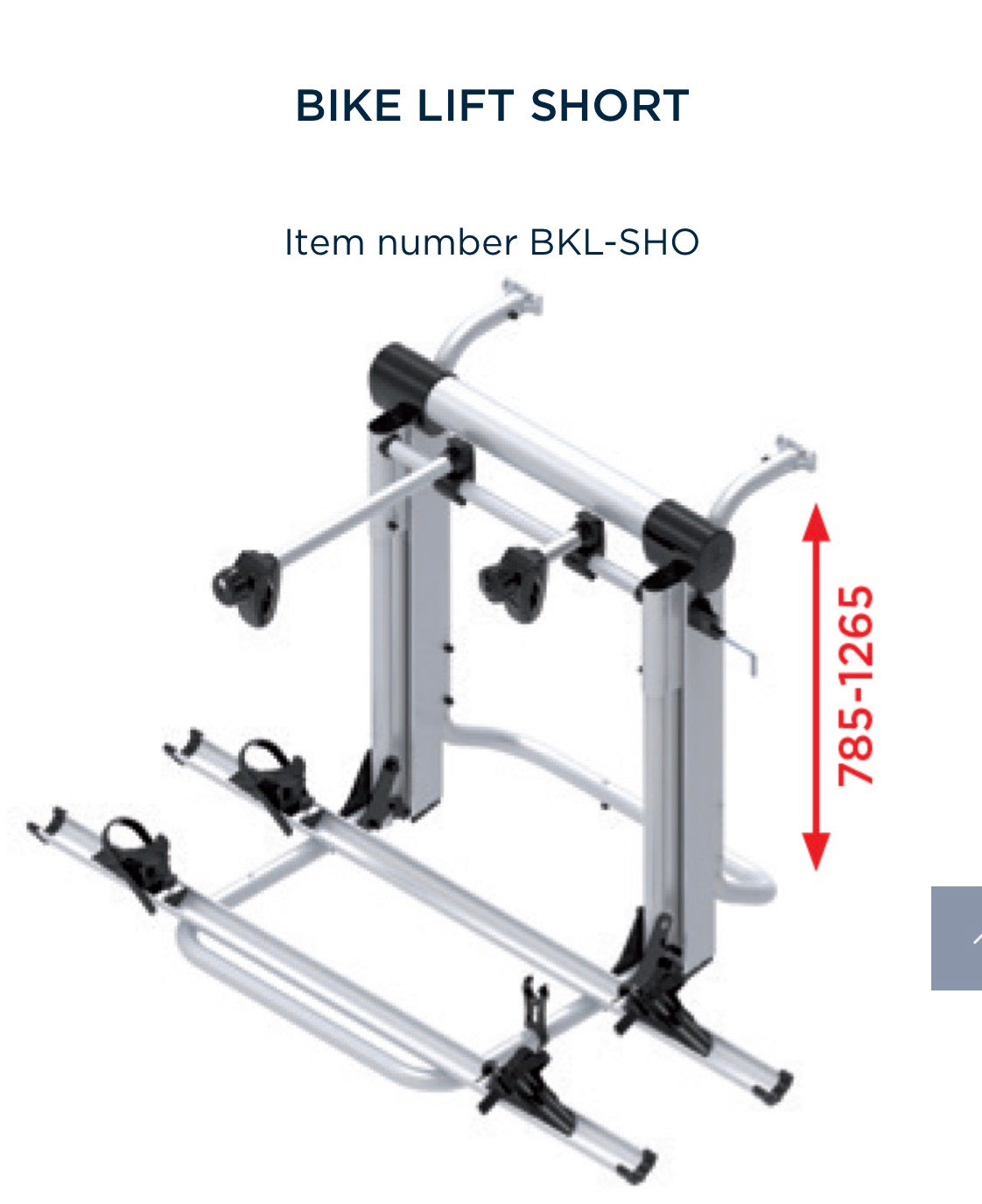

  • Model: Electric Bike Lift – Short (785–1265)
  • Power: 12V motor with switch (remote control optional)

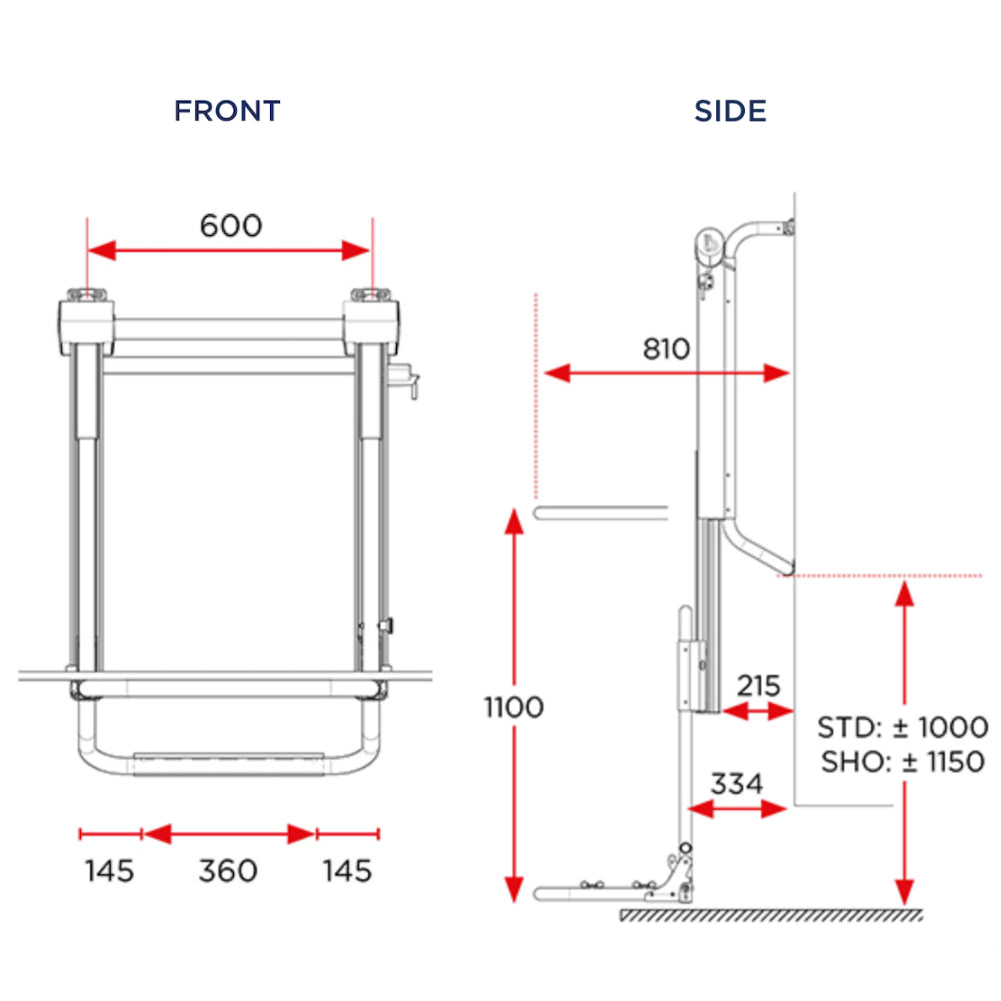

  • Max height difference: up to approx. 110 cm between loading and travel position
  • Max load: 60 kg (2 x e-bikes or 3 x standard bikes)
  • Product weight: 20 kg

Rails are SENT separately.
