FLIP PRO MAX Ultra Charge Dual USB-C Charging Socket

Flip Pro Max is designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. This provides the fastest charging for your devices onboard.

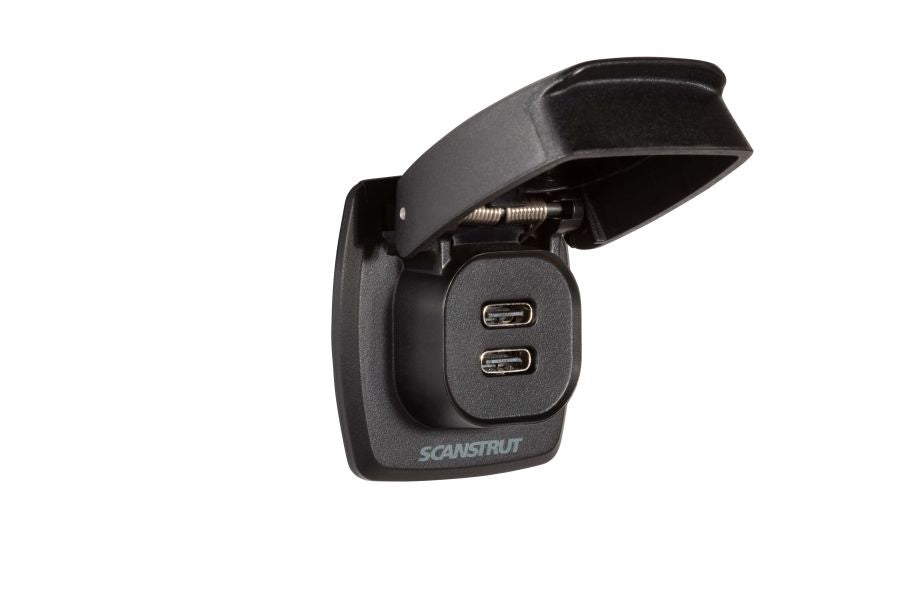

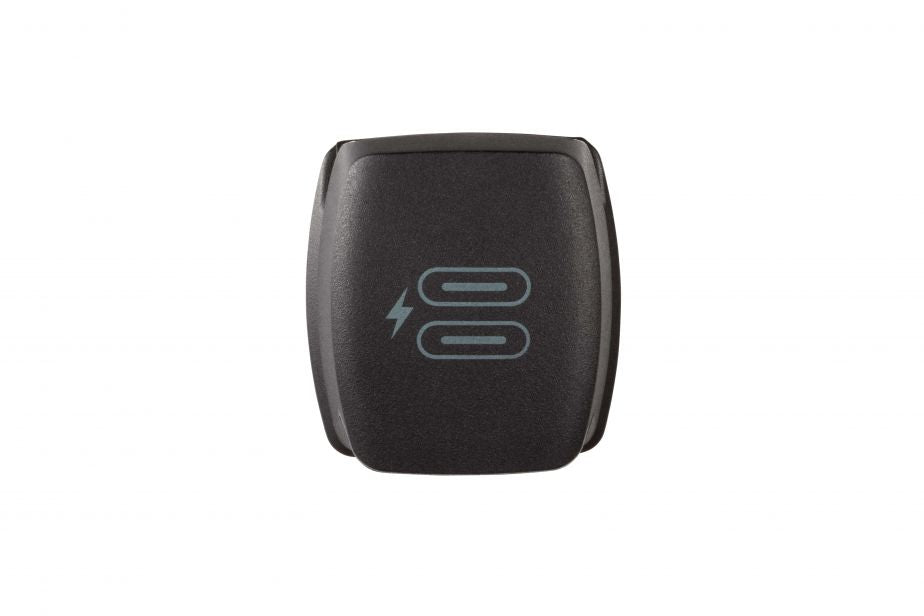

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.

Featuring a super-compact footprint, Flip Pro Max is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro Max is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops and large tablets, phones and any other USB-C powered devices onboard.

USB – C output:
60W max on 24V system
36W max on 12V system

Universal

• Universal fit for any USB-C connectors.
• Fast charge (60W max) up to 2 devices at a time.

Installation

• Easy install, using a Ø32mm (1.25”) hole saw.

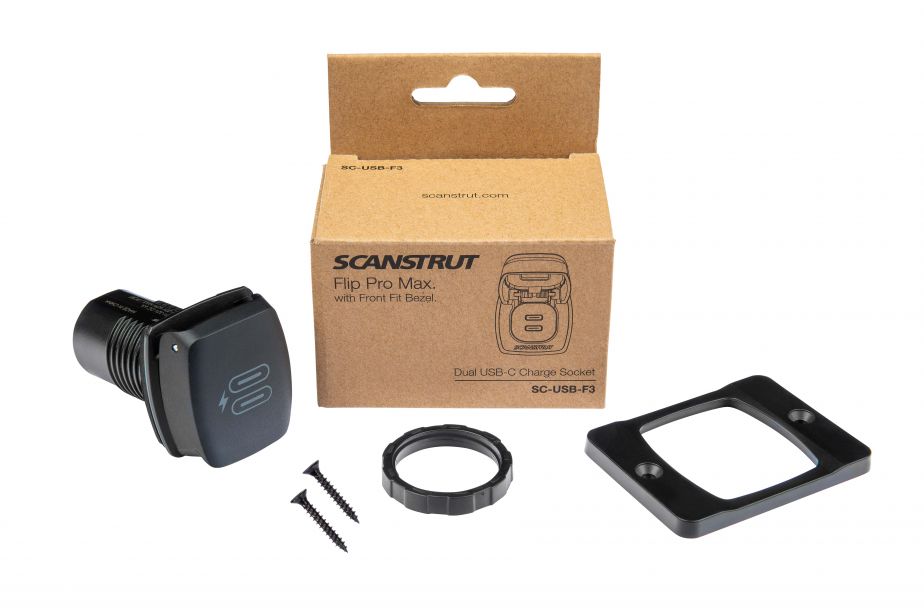

• Supplied as standard with an optional front fit bezel.


Marine Ready

• Internal anti-corrosion protective coating.
• UV resistant.
• 316 stainless hinge and spring.
• IPX4 waterproof with the cover closed.

Electrical Information

• Input voltage: 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W

Important information
To maximise charge performance, use the cable supplied with your tablet, phone etc. (C to C, or C-lightning)Phones charge at the same speed on either a12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops.
