Houghton Air Conditioners  |  SKU: FIN-HB2400

Houghton Belaire HB2400 Air Conditioner Inc Roof Section & Plenum

The Houghton Belair HB2400 reverse cycle air conditioner is designed to suits smaller caravans, motorhomes and mobile dog wash vans. This low profile and lightweight roof top unit and ple...

  • At 43mm in height, the plenum has an elegant design that complements modern interiors. Features...
  • Attractive streamlined canopy design to perfectly integrates with modern caravan & motorhome design.
  • Advanced remote control with cooling, heating, dehumidifying, dry, sleep & timing functions.
Product details & compatibility
Regular price $1,899.00
Tax included Shipping calculated at checkout.
Make sure it fits your setup.

Check dimensions, connections and model compatibility before ordering.

Ask a product questionBuying for your workshop or business?

THE DETAILS THAT MATTER

Get to know your next upgrade.

Product details, fitment and support in one place.
Product overview

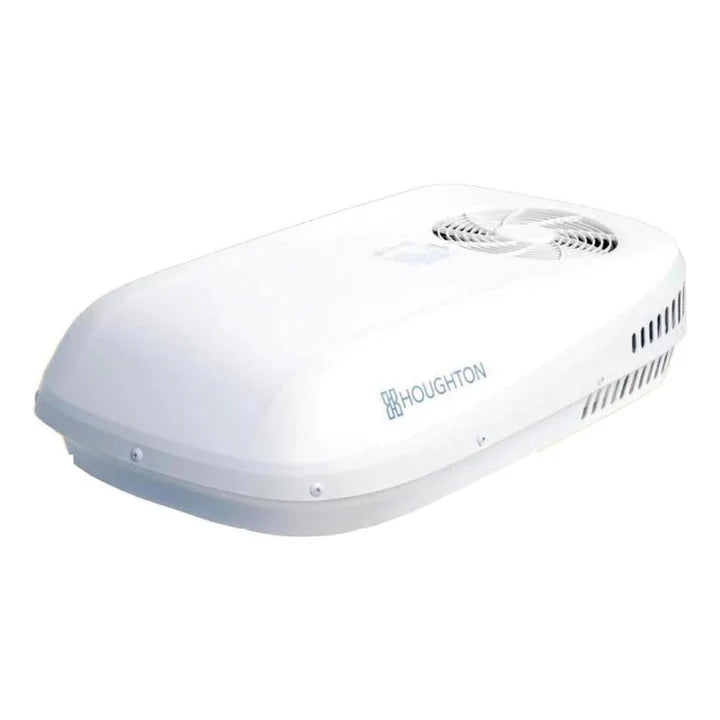

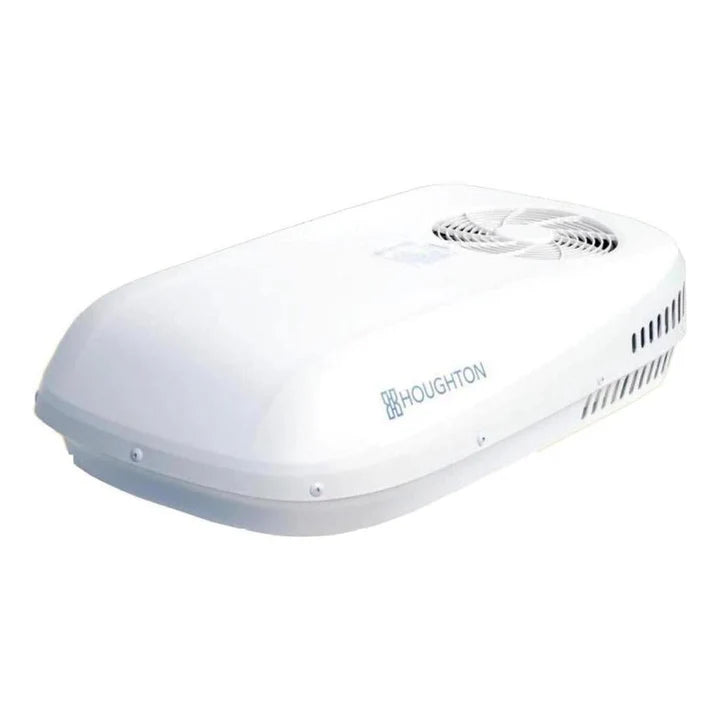

The Houghton Belair HB2400 reverse cycle air conditioner is designed to suits smaller caravans, motorhomes and mobile dog wash vans. This low profile and lightweight roof top unit and plenum air-conditioner is only (31.8Kg) reducing overall weight. The widely used unit for all small caravan, motorhomes and mobile wash vans as used in the industry.

FEATURES

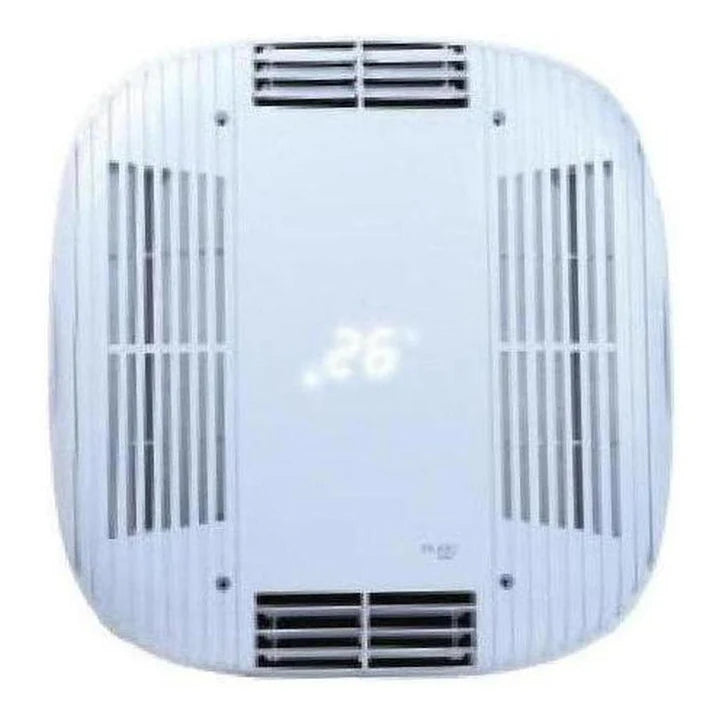

  • At 43mm in height, the plenum has an elegant design that complements modern interiors. Features easy to read LED display showing temperature & mode.
  • Attractive streamlined canopy design to perfectly integrates with modern caravan & motorhome design.

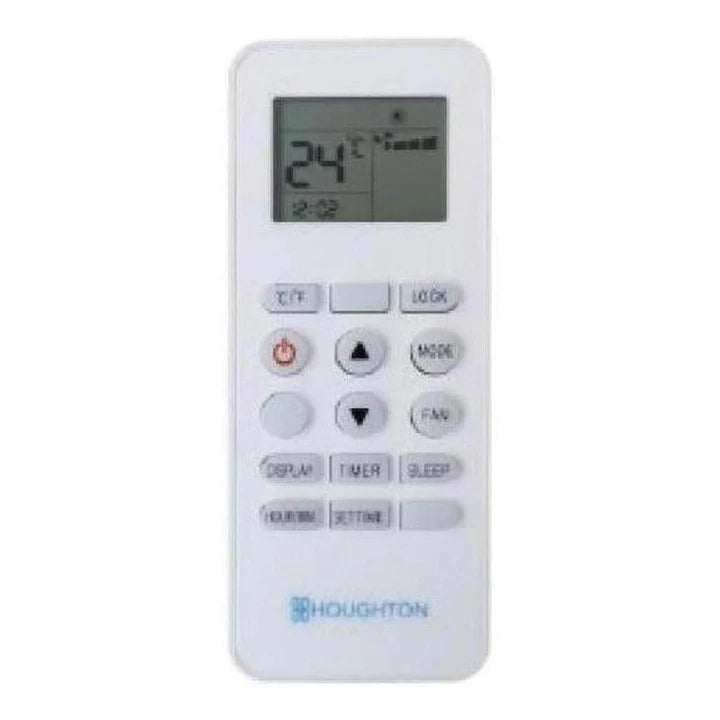

  • Advanced remote control with cooling, heating, dehumidifying, dry, sleep & timing functions.
  • Three speed, quiet, high efficiency indoor fan. The large outdoor axial fan draws air to exchange heat, leading to highly efficient, powerful performance.
  • Spiral retractable duct allows easy installation without cutting. Insulation eradicates condensation while optimizing power & performance.
  • Excellent reverse cycle performance allows the unit to operate in temperatures from -5°C to +50°C. Features intelligent defrosting technology.
  • Super strong & lightweight UV stabilized polypropylene chassis & canopy suit to most conditions. Excellent performance & good looks combine to make the unit the best choice for light caravans & motor homes.

SPECIFICATIONS

Power supply 1 PH/230-240V /SOHz

Cooling capacity 2400W

Power input cooling 950W

Current cooling 4.2A

Heating capacity 2400W

Power input heating 850W

Current heating 3.8A

Maximum input power 1040W

Maximum current 4.5A

Weight of outdoor unit 29kg

Weight of plenum 2.8kg

Installation opening (mm) 360 x 360 / 400 x 400 Optional adapter required for 400 x 400

Outdoor unit dimension (mm) 1002L x 567W x 215H

Plenum dimension (mm) 557L x 536W x 43H

Warranty 2 Years from purchase

Installation

Installation is recommended to be installed by a professional. If assistance is required, please feel free to contact us so we can recommend and direct you to our friendly service agent.
