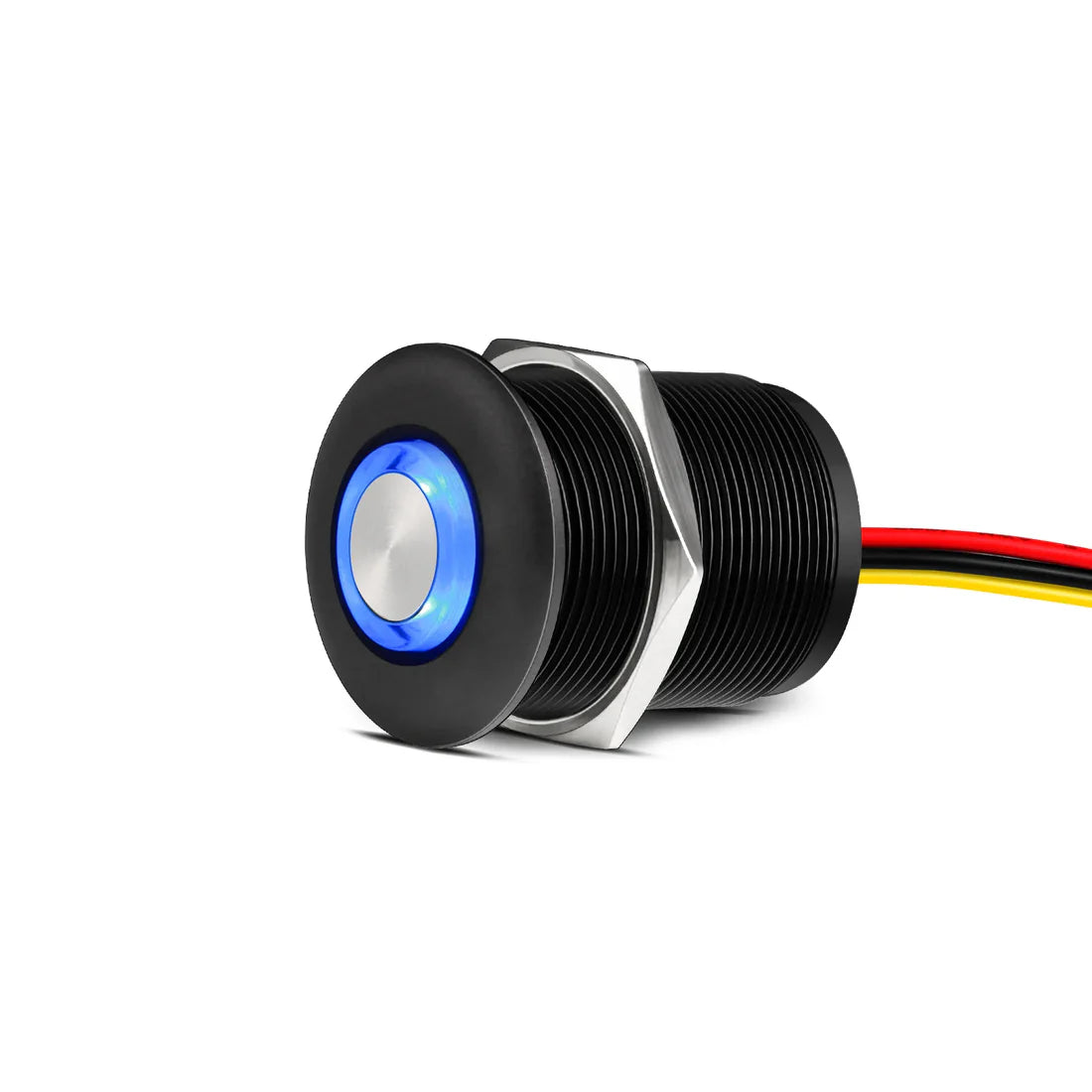

LED Aluminum Black Dimmer Switch

LED Aluminum Black Dimmer Switch

Elevate your interior lighting experience with this Premium Aluminum LED Dimmer Switch in sleek black. Built from CNC-milled aluminium and engineered for long-term durability, it delivers smooth, flicker-free dimming in a compact, low-profile form factor. Perfect for campervans, RVs, boats, trucks and trailers, this dimmer adds modern style and reliable performance to any 12V lighting system.

⭐ Essential Benefits

• Push-button dimming control – Short-press for on/off, long-press for smooth brightness adjustment.
• Blue backlit locator ring – Makes the switch easy to find in the dark without being too bright.
• Advanced PWM technology – Flicker-free linear dimming from 3% to 100% with no buzzing or humming.
• Brightness memory – Automatically recalls your last brightness setting when powering back on.

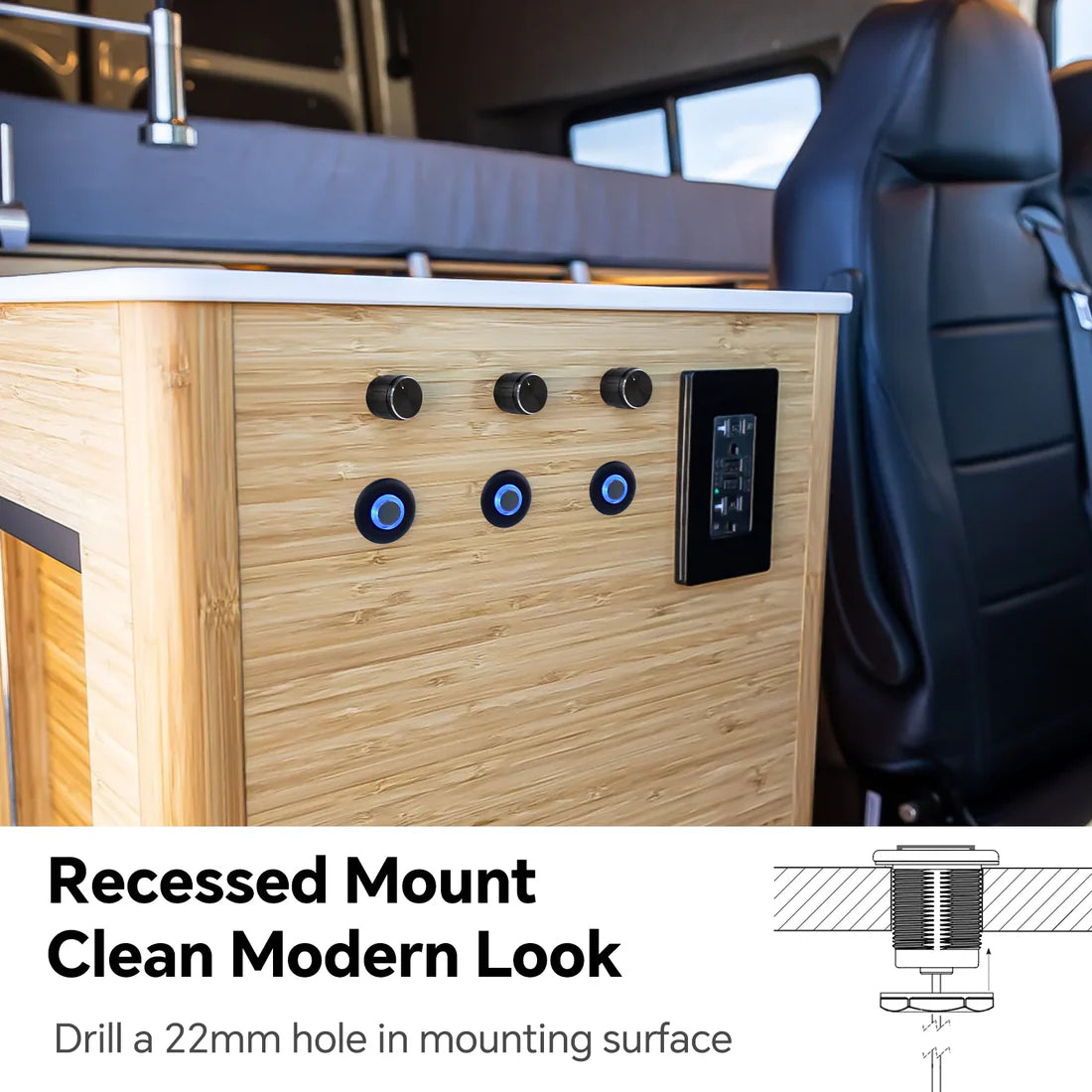

• Recessed, flush-mount installation – Fits a 22 mm cut-out for a clean, modern look in any panel.

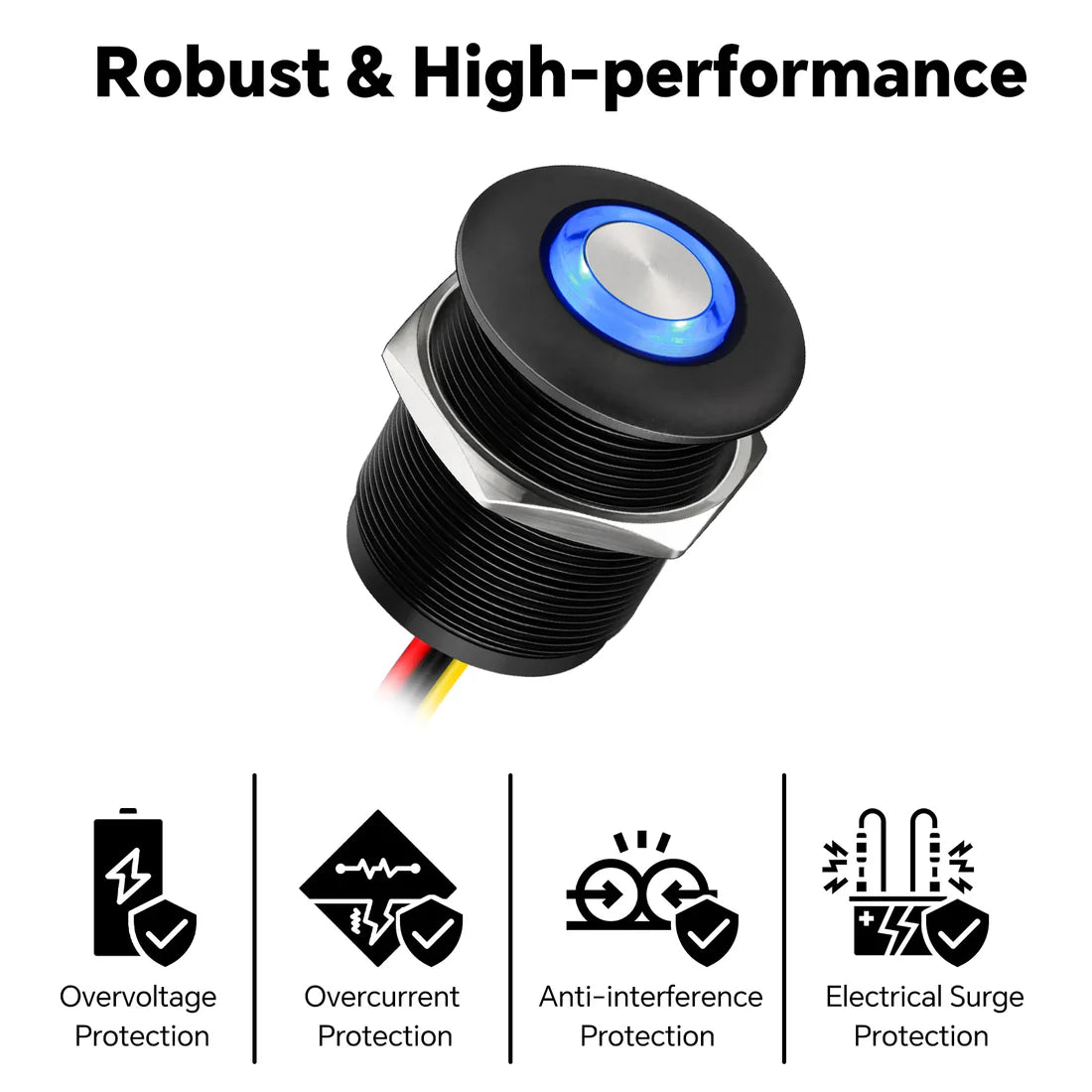

• All-aluminium construction – CNC-milled body with excellent heat dissipation and long-lasting durability.
• Ideal for 12v lighting systems – Works with dimmable LED, incandescent and halogen loads.

⚙️ Functionality

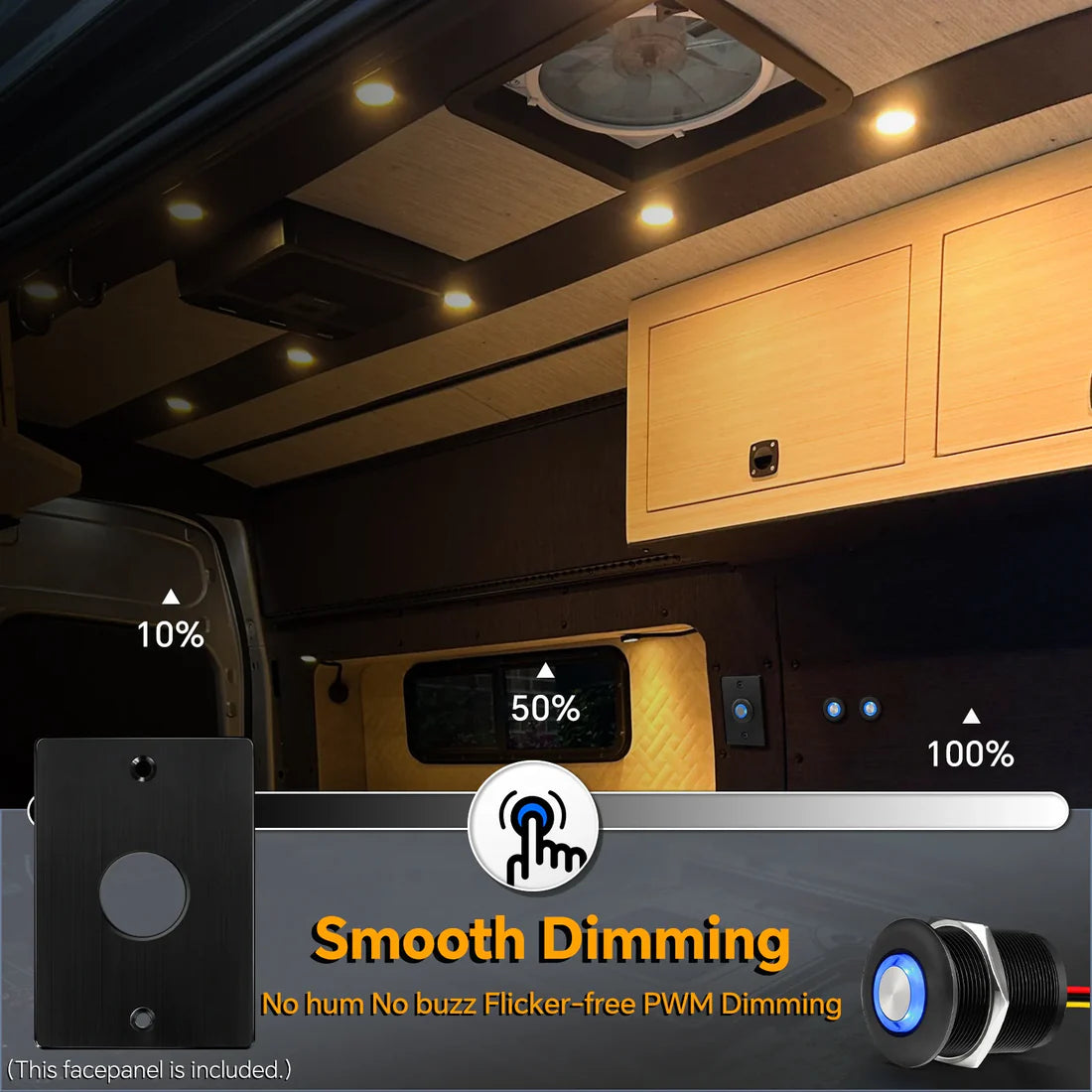

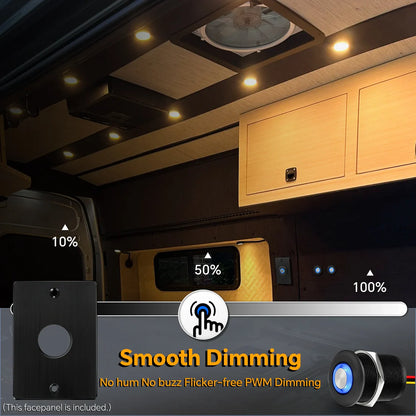

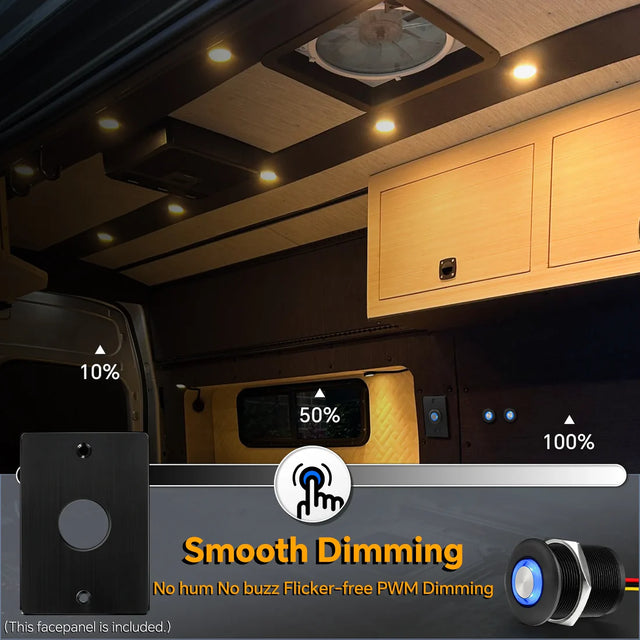

This 12V dimmer uses pulse-width modulation (PWM) to achieve stepless brightness control across the full 3%–100% range. Operation is simple: tap to turn your lights on or off, or press and hold to dim up or down. The integrated memory feature restores the previous brightness level every time the light is switched back on, ensuring a consistent and convenient lighting experience.

🔌 Compatibility

• 12V DC lighting circuits
• LED strip lights (dimmable)
• Recessed LED downlights
• Dome lights, accent lights and interior fixtures

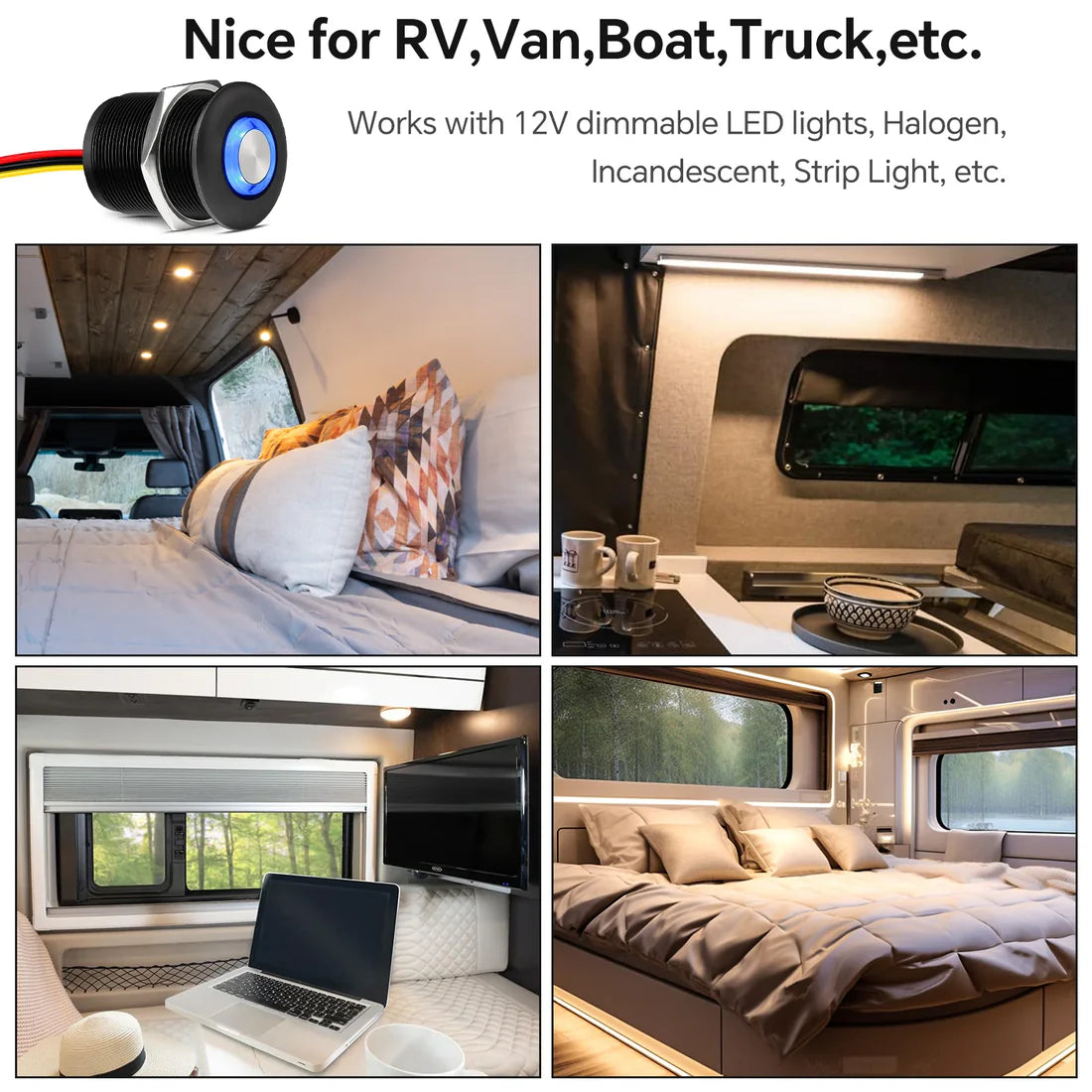

• Campervans, RVs, caravans and motorhomes
• Boats, truck cabins, trailers and off-grid systems

🧰 Installation Difficulty

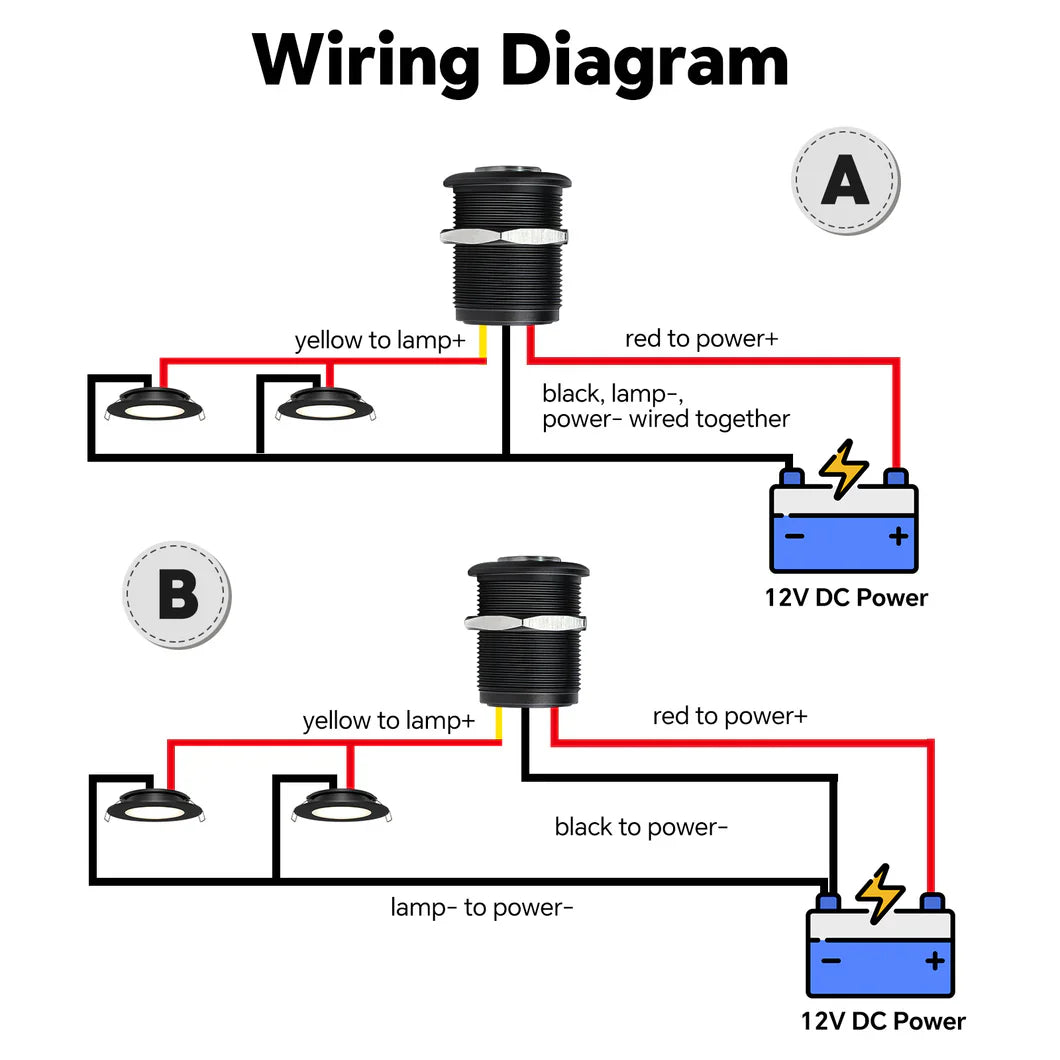

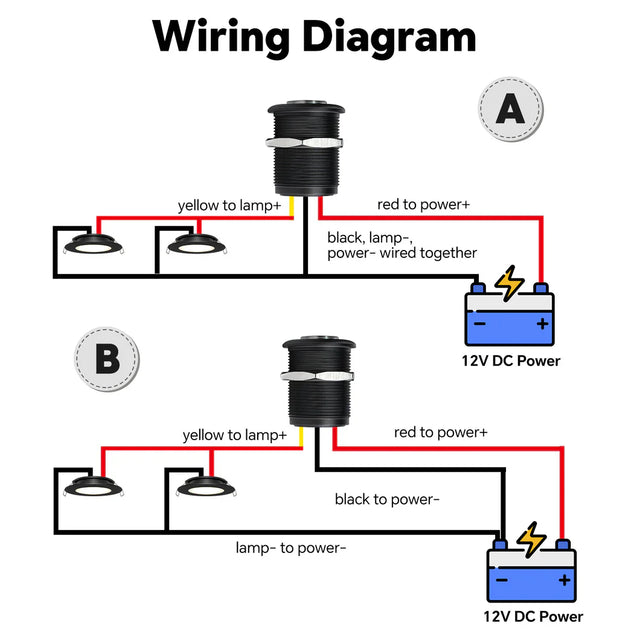

🟢 1/5 (Easy) – Requires basic 12V wiring and a 22 mm panel hole for recessed mounting.

🔍 Features

• Push-button on/off + dimming
• Blue locator backlight
• PWM flicker-free dimming
• 3%–100% range
• CNC-milled aluminium body
• Recessed 22 mm mount

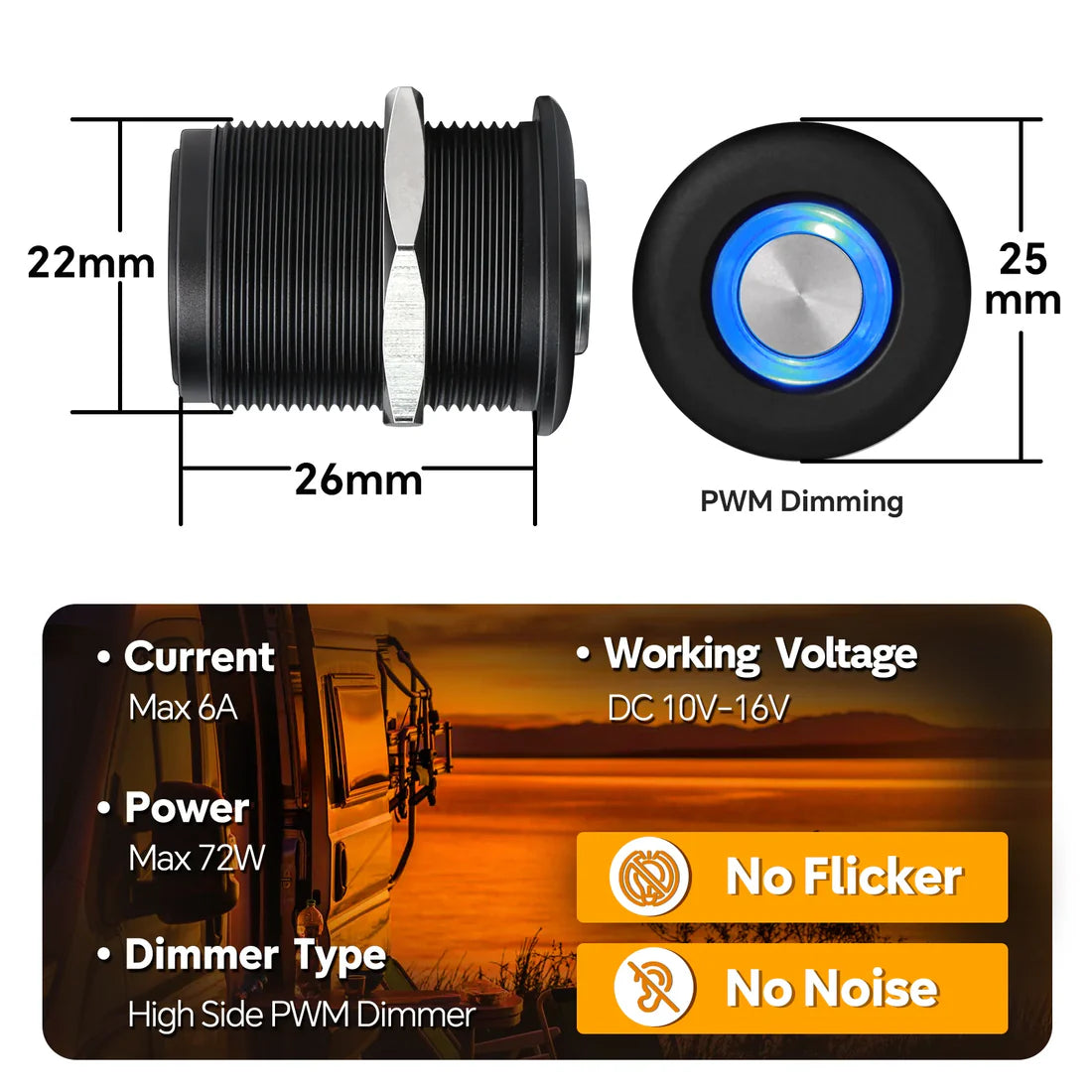

• Max 6A output
• IP64 interior protection
• Smooth tactile operation

📊 Specifications

📦 What’s Included

• 1 × Aluminium LED Dimmer Switch (Black)

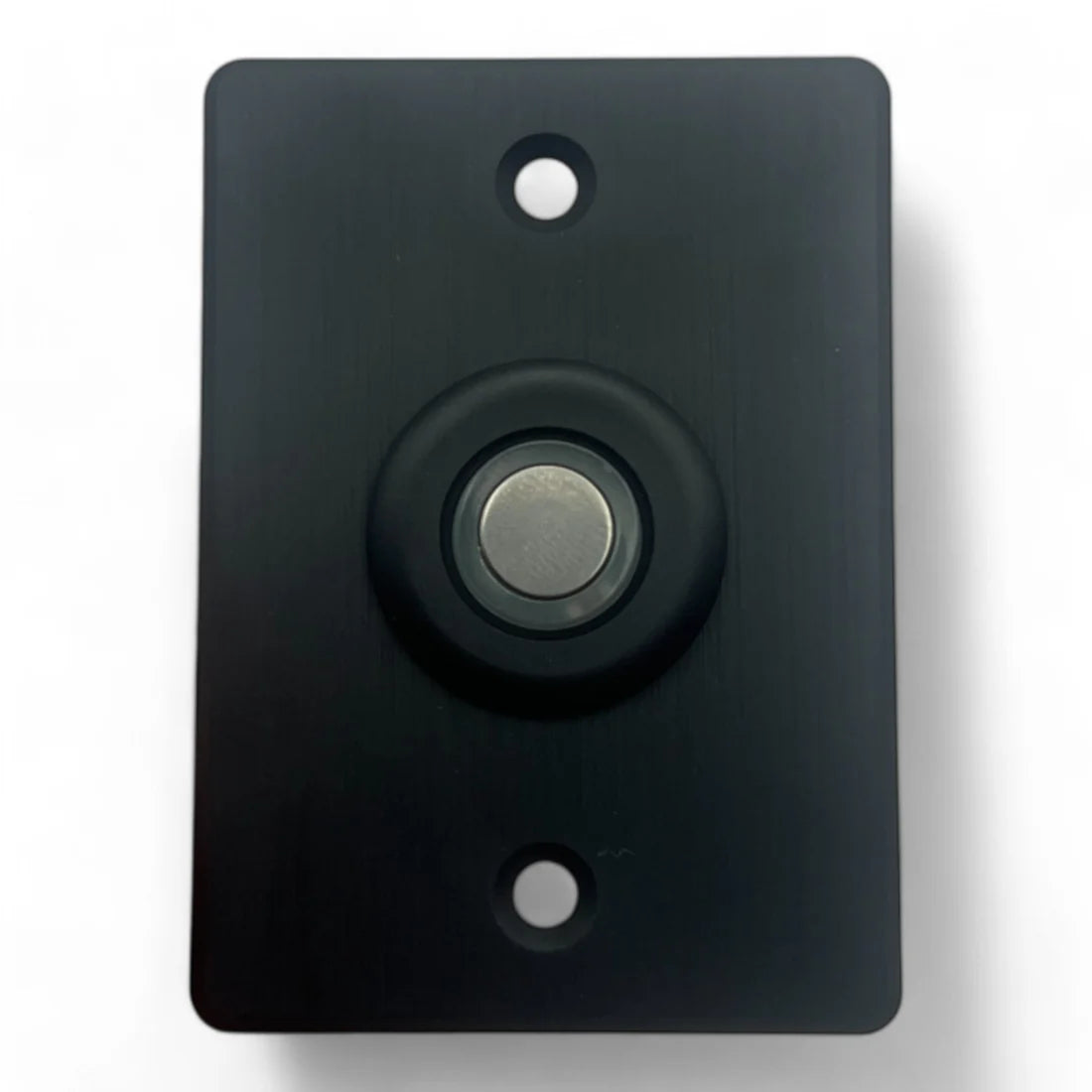

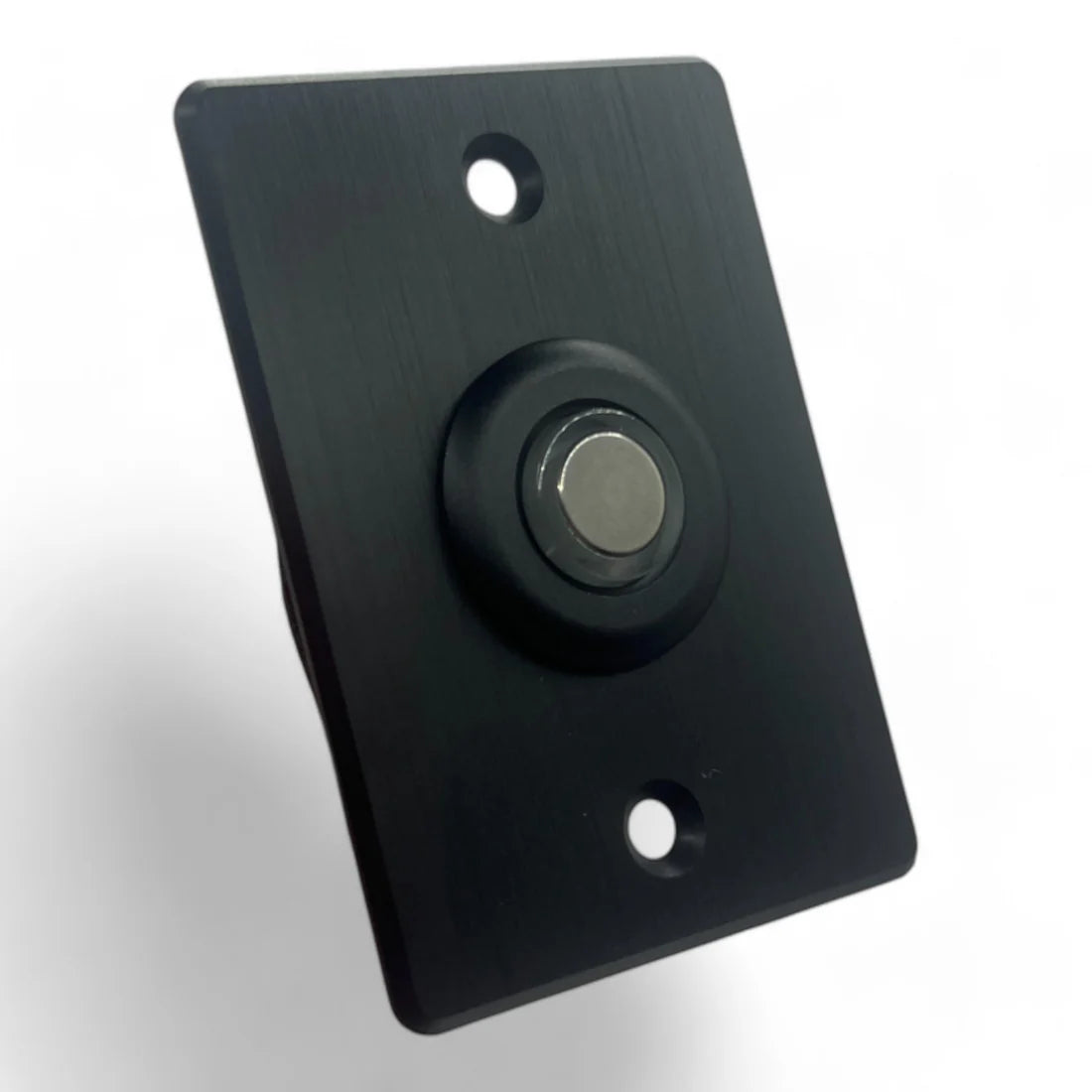

• 1 × Brushed aluminium backing plate (50 × 70 mm)
• 1 × Locking nut
• 2 × Mounting screws
