SR Mecatronic  |  SKU: SD-M200W

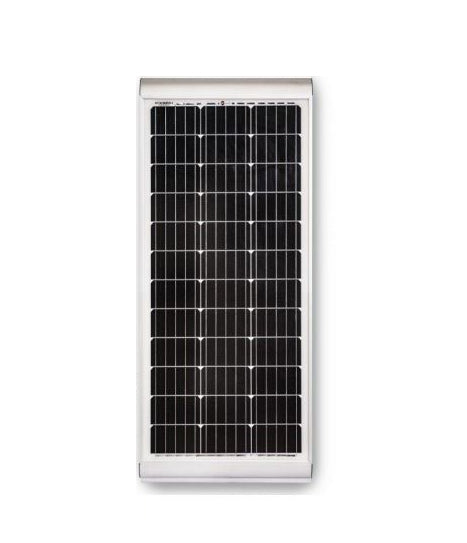

SR Mecatronic 200W Solar Panel & Mounting Bracket

The SR Mecatronic Solar Panel with Mounting Bracket 200W is an effective off grid solar charging solution built with monocrystalline cells, an anodised aluminium frame and low tempered ir...

  • High efficiency monocrystalline solar cells
  • Anodised aluminium frame
  • Low iron tempered glass
Product details & compatibility
Regular price $425.00
Tax included Shipping calculated at checkout.
Make sure it fits your setup.

Check dimensions, connections and model compatibility before ordering.

Ask a product questionBuying for your workshop or business?

THE DETAILS THAT MATTER

Get to know your next upgrade.

Product details, fitment and support in one place.
Product overview

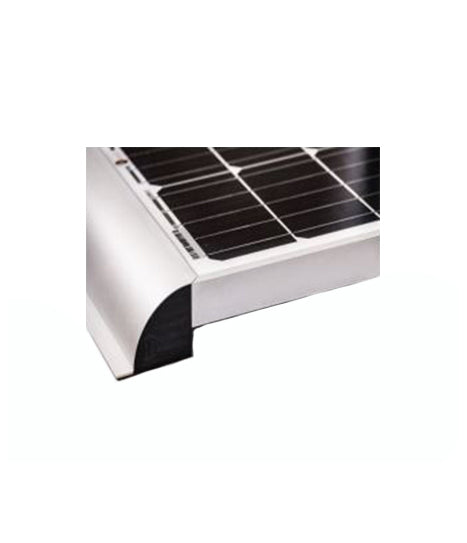

The SR Mecatronic Solar Panel with Mounting Bracket 200W is an effective off grid solar charging solution built with monocrystalline cells, an anodised aluminium frame and low tempered iron front glass. There is an IP67 Waterproof junction on box with bypass anodes, and MC4 compatible plugs on the 4mm cable. The 200W solar panel is easy to install, simply plug in and go.

A bonus is that you don’t need to purchase a mount separately because this unique solar panel comes complete with a integrate mounting kit.


Benefits & Features

  • High efficiency monocrystalline solar cells

  • Anodised aluminium frame

  • Low iron tempered glass

  • Junction box: IP67 with bypass anodes

  • Connector: MC4 compatible

  • Complete with integrate mounting kit

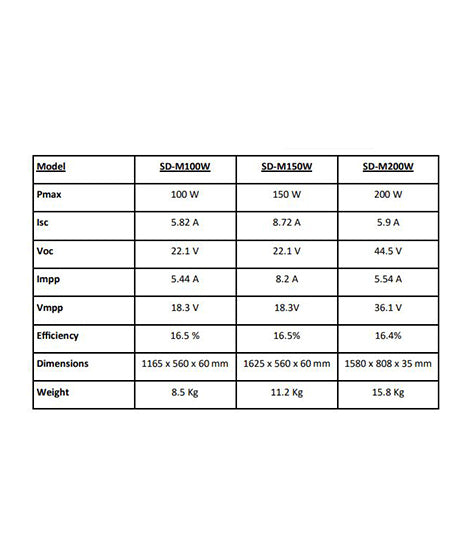

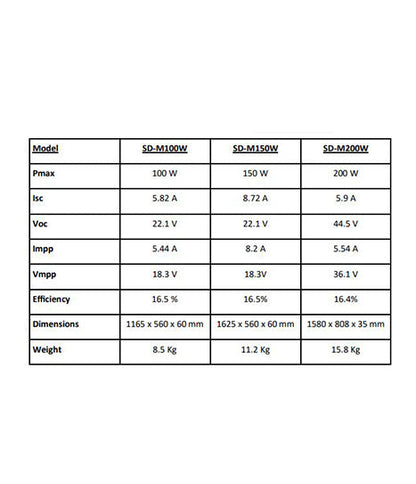

  • Maximum Power (W): 200W

  • Open Circuit Voltage (Voc): 45.5 V

  • Short Circuit Current (Isc): 5.9 A

  • Current at Maximum Power (Impp): 5.54 A

  • Voltage at Maximum Power (Vmpp): 36.1 V

  • Panel Efficiency: 16.4%

  • Dimensions: 1580mm x 808mm x 35mm

  • Weight: 15.8 Kg

  • Model: SD-M200W

  • Warranty: 10 year manufacturing warranty, 12 Year warranty at 90% output power and a 25 Year warranty at 80% output power
